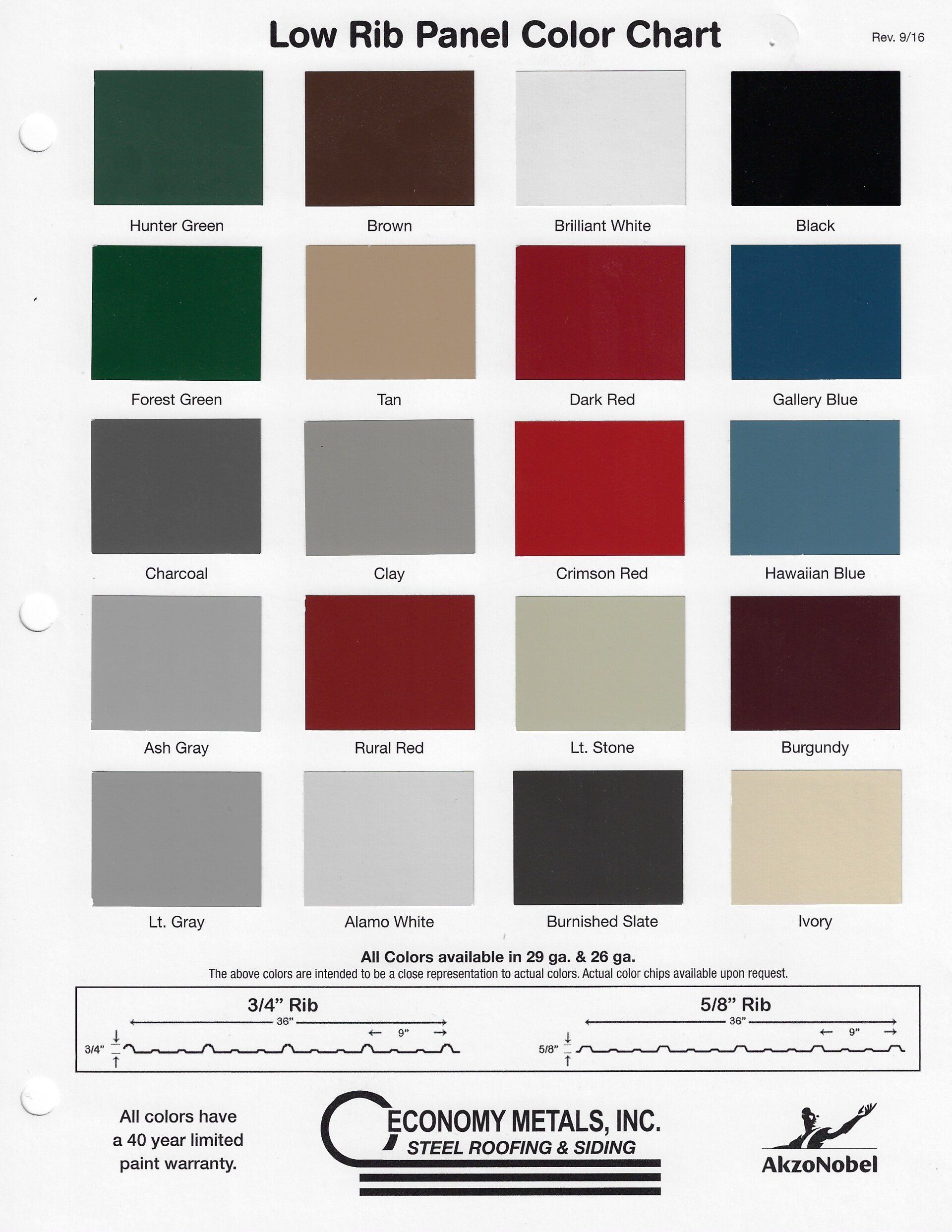

Our Metal Specs & Colors

Custom Commercial Metal Building Installation Around Columbia, MO



Call Us Now!

We're proud of our metal building services and materials at Bilt-Rite Buildings, and our Ashland area customers love that we use quality products. Bilt-Rite Buildings is located in Ashland, but offers Custom Commercial Metal Building installation in Columbia, MO and surrounding areas, including We are easily able to stand behind our installation and build teams, but the products we use are equally exceptional - and that makes a difference. With metal panels you'll want durability and an excellent finish quality that stands up to the elements and doesn't fade over time. Read about the systems we use below, and contact us if you have an questions about the specs or materials.

Panel-Loc Plus


Panel-Loc Plus is a low rib (3/4”) panel which provides durable performance with an added striation on top of the rib that gives it even more strength. It gives agricultural and light commercial projects, as well as residential roofs, the protection of steel with an attractive appearance.

Panel-Loc Specifications:
  • Panel rib height: ¾”
  • Panel coverage: 36” wide
  • Panel length: 26” to 45’ in .5” increments
  • Tensile strength: 80,000 psi minimum
  • Gauge: 26 and 29
  • Minimum roof slope: 3:12 pitch minimum or greater
  • Substrate: Galvalume (zinc alloy plus aluminum)
  • UL ratings: 2218 class 4 hail impact, 790 fire resistance, 580 uplift resistance

Coating:

CentralGuard - powered by Valspar

CentralGuard is the toughest siliconized polyester coating available. It combines the durability of ceramic and select inorganic pigments with the strength of a proprietary silicone polyester resin formula to offer extreme weather, stain and abrasion resistance and minimal chalking and fading. Bilt- Rite building installs metal panels that carries Central State "life-time" limited manufacturers warranty.

• Please contact us for availability of additional panel configurations and warranty information
